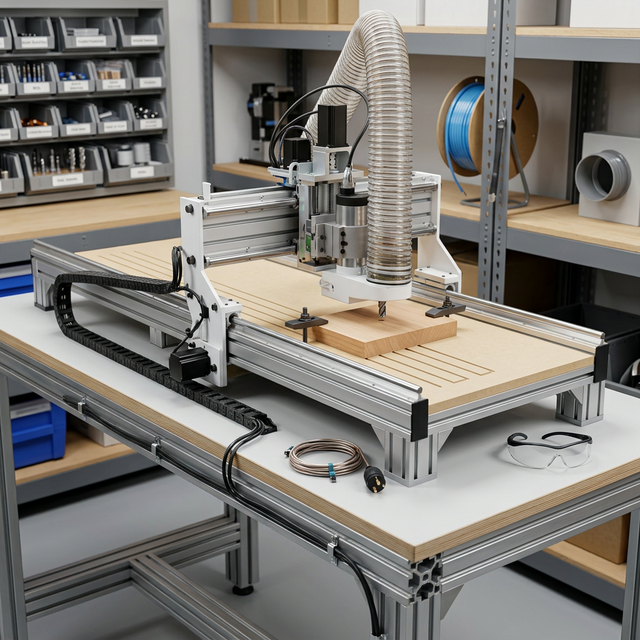

Rhythm 1648 Tabletop

Rhythm 1648 Tabletop

$6,495.00

Ideal for luthiery small components and compact shop spaces. 16" x 48" inch cutting area. Starting at $6495

Engineered for maximum rigidity, industrial-grade throughput, and extreme precision. Every component is optimized to match the demanding workflows of custom board building, ski shaping, and high-end luthiery.

Machine Specifications

■ Rigid Frame
Durable and rigid custom-engineered aluminum extruded frame.
■ Drive Mechanism
High-precision Rack & Pinion on X/Y axis with Ball Screw on Z axis.
■ Power & Spindle
2.2kW (3 Hp) Air-Cooled Spindle paired with a robust 2.2kW VFD controller.
■ Stepper Motors
570 oz/in High-Torque Steppers on all axes; Dual Steppers on Y/A drive.
■ Z-Axis Travel
100mm Z-Axis vertical travel standard (150mm and 200mm clearances available).
■ Motion Controller
Ethernet-based controller (requires tablet/laptop with ethernet & Mach3 software).

Features & Inclusions

  • ✔ Perforated MDF Spoilboard: Engineered specifically for shop-vac-powered vacuum hold-down systems (shop-vac not included). Plain MDF tops or customized T-slot beds are also available.
  • ✔ Dust Shoe: Premium dust shoe featuring a 4" port that hooks right into your shop's dust collection system for clean operation.
  • ✔ Heavy-Duty Cabling: Fully shielded, high-flex drag chains on all axes to ensure clean signal isolation and robust mechanical protection.
